Grandview 9ft Fixed Frame Edge Screen 16:9

Product Description

Grandview Cyber Fixed Frame Edge Screens
The Edge series of fixed frame Projection screens offer the ultimate in 4K and 8K Ultra HD projection surface while also remaining uniformly flat. Ideal for permanent more dedicated cinema rooms, the fixed frame design with 29mm narrow surround gives a true cinematic experience.

High Tensioned Surface
The multiply ultra smooth 4K and 8K vinyl projection screen material is kept under high tension by a unique means found only in Grandview products. Steel bars are inserted into a looped seem that runs round the edge of the material. The bars are then fixed into the aluminium frame, causing the material to be pulled evenly from all four sides.

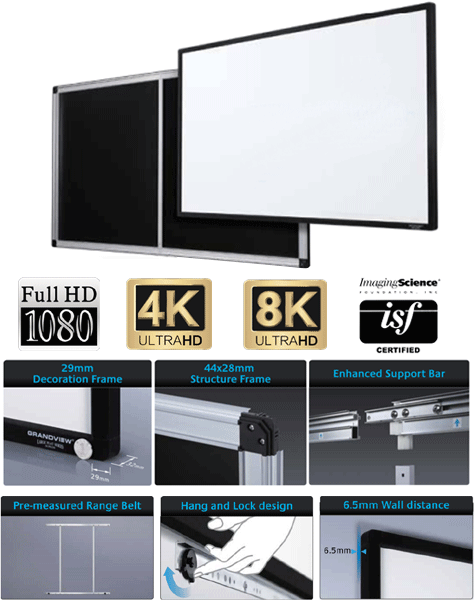

Frame Design
The super rigid narrow frame is only 29mm wide and constructed of extruded aluminium with a black velvet finish that absorbs any stray light from an overlapping picture. The material is mounted to a 2nd larger frame located behind it which also features a central support bar resulting in a super rigid structure. The frame secured to the wall via two long aluminium brackets, the lower bracket allows the installer to lock the screen into place.

Material
The most important aspect of any screen is its ability to bounce the correct amount of light back at the audience without altering colour reproduction and contrast ratios. The new Grandview Edge UHD130 Series fixed screens use an ultra smooth material for up to 8K resolutions and keeps picture reproduction as accurate as possible. The material has a low gain rating of 1.3, keeping contrast levels high and offering a wide even viewing angle.

Installation of Edge Screen
The pre-made measured belt allows installation to be quick and easy, so that it can be done by one person.

Other features and measurements
Just like televisions, projector screens are measured in imperial feet and inches. The screen is measured by the width of the material from left to right. The standard sizes are 6ft, 7ft, 8ft,and 9ft. The viewable area is the white part of the screen which is slightly smaller due to the surrounding black borders.


Screen Size
9ft Wide
Dimensions (Viewable)
2656 x 1494mm
Diagonal
120"
Outside Frame Size
2714 x 1552 x 32


Brand
Grandview
